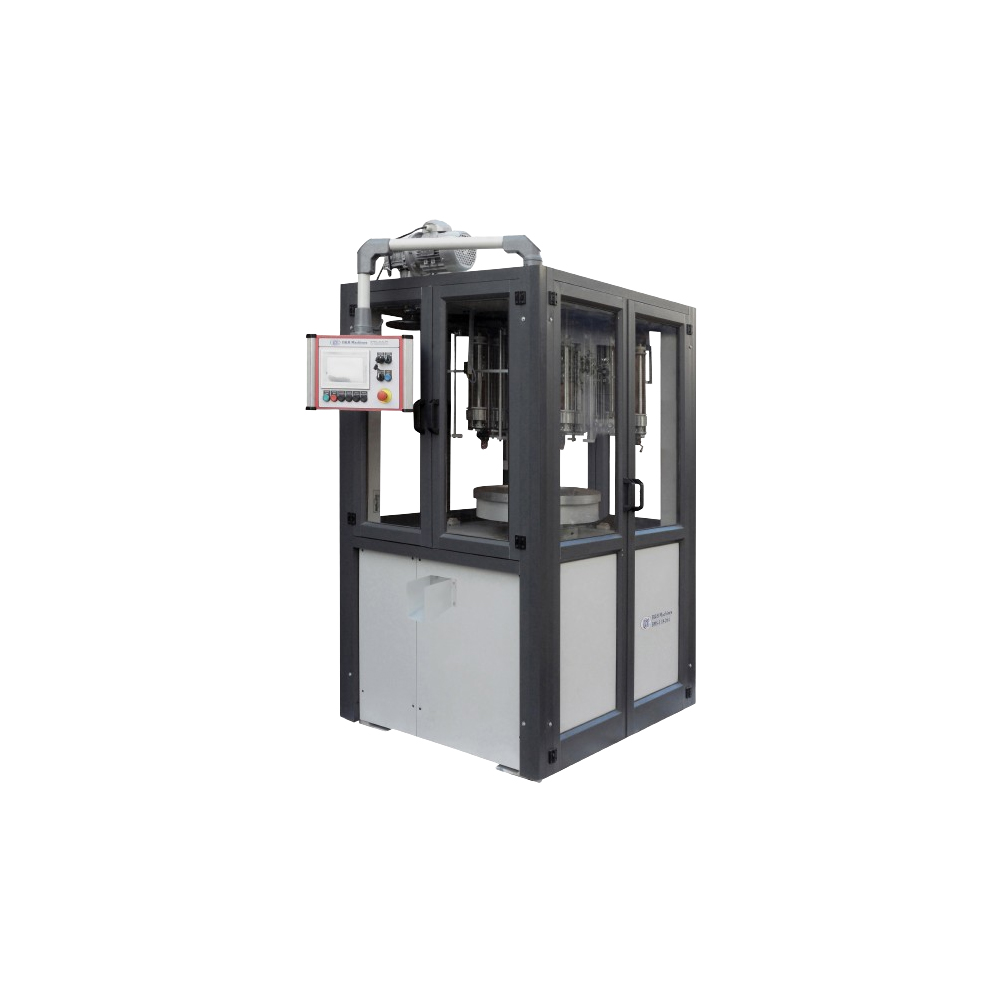

Round Braiding Machine

B&B offers wide range of high speed round braiding machines. Our high speed round braiders are available starting from 8 carriers to number of carriers as per customer requirements with different pitch sizes & single/duplex variants.

Features

  • Hardened track plate made of alloy steel.
  • Hardened horn plate and horn gears made of alloy steel.
  • Control panel with VFD for smooth start/stop and to run the machine at various speeds.
  • Change gear system to adjust the pitch of braiding.

Applications

  • Cords for clothing, jacquard machine
  • Shoe lace, fishing line, hallow glass fibre tubes/sleeves
  • Surgical suture, catheters
  • Ski rope, mountaineering rope, anchor rope, towing rope, safety rope, yatch rope, heavy duty sling

Round Braiding Machine

Types of Machine No. of Carrier Machine Size
L × D
Bobbin Size (mm) Bobbin Volume (ccm) Carrier Rev. per minute Carrier Type Motor (kw)
BMR-1/12-192 12 950×750 70×285 950 40 CBT285-P 0.75
BMR-1/12-224 12 1040×840 90×320 1775 33 CDT320-P 0.75
BMR-1/16-192 16 1050×820 70×285 950 30 CBT285-P 0.75
BMR-1/16-224 16 1150×950 90×320 1775 25 CDT320-P 1.1
BMR-1/24-192 24 1130×1280 70×285 950 20 CBT285-P 1.1
BMR-1/24-224 24 1280×1430 90×320 1775 17 CDT320-P 1.5
BMR-1/32-192 32 1340×1520 70×285 950 15 CBT285-P 1.5
BMR-1/24-224 32 1560×1740 90×320 1770 12.5 CDT320-P 2.2
