Square Beading Machine

Square Beading Machine

B&B offers wide range of inverted packing braiding machines for producing rope with perfect square section. It's specially designed spring loaded carrier handles diverse range of fibers such as cotton, glass fiber, kevlar etc. at the same time holds large volume of yams for uninterrupted longer run. 883 packing braiders are available from 2 track, 08 spindles to 4 track, 52 spindles. Packing braiders are also available for round product as well, staring from 12 spindles to 32 spindles.

Features

  • Vertical axis, inverted carriers.
  • Heat treated track plate.
  • Heat treated horn ge ars and horn plates.
  • Integrated aluminum enclosure for safety.
  • Motor overload protection.
  • Automatic shut-off during yarn break/empty bobbin.
  • Reverse/forward inch function for proper setting.
  • VFD(Variable Frequency Drive) for smooth start/stop & to run the machine at various speed.
  • PLC with touch HMI for user friendly machine opera tions & recipe function.

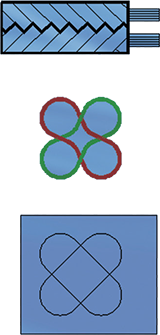

2 Track Square Packing Braiding Machine

Types of Machine No. of Carrier Machine Size L X D Bobbin Size (mm) Bobbin Volume (ccm) Carrier Rev.per minute Carrier Type Motor (kw)
BMS-2/08-176 8 700X700 60x160 370 65 CAT180-P 0.375
BMS-2/08-192 8 700X700 70x180 600 65 CBT180-P 0.55
BMS-2/08-224 8 900X900 70X285 950 50 CBT285-P 0.75
BMS-2/12-264 12 980x850 70X180 600 45 CBT180-P 0.75
BMS-2/12-288 12 1000x950 70X285 950 40 CBT285-P 0.75
BMS-2/16-352 16 1250x1100 70X285 950 25 CBT285-P 1.1
BMS-2/16-432 16 1500x1150 90X320 1775 20 CDT320-P 1.1
BMS-2/24-624 24 1800x1600 90X320 1775 15 CDT320-P 1.5

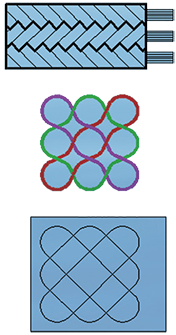

3-track Square Packing Braiding Machine

Types of Machine No. of Carrier Machine Size L X D Bobbin Size (mm) Bobbin Volume (ccm) Carrier Rev.per minute Carrier Type Motor (kw)
BMS-3/12-152 12 1200x850 70X285 500 40 CBT180-P 0.75
BMS-3/12-224 12 1230x1020 70X285 950 28 CBT285-P 0.75
BMS-3/18-192 18 1000x880 60X180 370 37 CAT180-P 0.75
BMS-3/18-264 16 1230x1020 70x285 950 32 CBT285-P 1.1
BMS-3/18-352 18 1680x1350 90X320 1775 20 CDT320-P 1.1
BMS-3/20-280 20 1560x1080 70X1285 950 22 CBT285-P 1.1
BMS-3/20-320 20 1560x1230 90X320 1775 20 CDT320-P 1.1
BMS-3/24-352 24 1680x1350 70X285 1775 18 CBT285-P 1.5

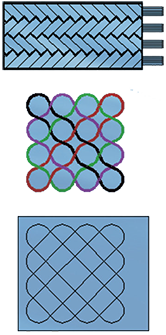

4-track Square Packing Braiding Machine

Types of Machine No. of Carrier Machine Size L X D Bobbin Size (mm) Bobbin Volume (ccm) Carrier Rev.per minute Carrier Type Motor (kw)
BMS-4/24-264 24 1550x1330 70X285 950 24 CBT285-P 2.2
BMS-4/24-352 24 1870x1680 90X320 1775 16 CBT320-P 3
BMS-4/32-352 32 1870X1680 70X285 950 16 CBT285-P 4
BMS-4/32-432 32 2140x1740 90X320 1775 12 CDT320-P 4
BMS-4/32-480 32 2430x2150 120X320 3360 10 CGT320-P 5
BMS-4/36-320 36 1700x1500 90X320 1775 22 CDT320-P 3
BMS-4/36-400 36 2080x1900 7x0X285 950 12.5 CBT285-P 4
BMS-4/36-400 36 2080x1900 120X320 3360 10 CGT320-P 5
BMS-4/52-320 52 1750x1550 70X285 950 12.5 CBT285-P 5

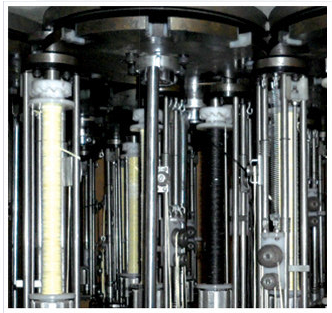

Carrier is available with compression or tension springss. It is also available with closed creamic eye lid or roller guide head. Guide pulleys are hard annodizad or nitrided.

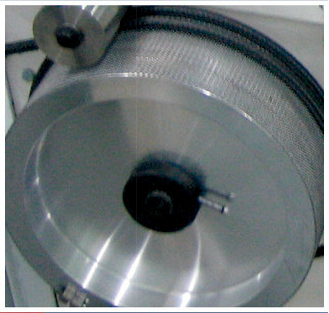

All take off disc can be available with rust proof fillet sheet or blade as per customer requirenment.

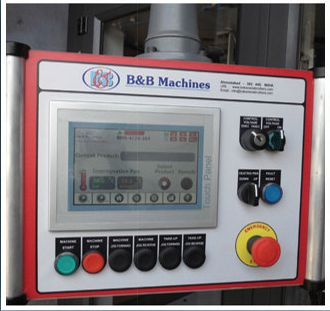

HMI with PLC enables fast and precise changes with leads to a shorter production time. The entries can be downloaded for a good documentation of the products.
